hydraulic components BMSY series orbit motors for Mini Digger Block Paving Brush Cleaner Attachment
Product details:
type code BMSY-200-E4-B-D
Displacement:200CC
Flange:
4-Ø13.5 Wheel-flange Ø160 ,
Shaft:
Shaft Ø 32 , parllel key 10×8×45
Ports:
G1/2 Manifold Mount; 2-M10 , G1/4

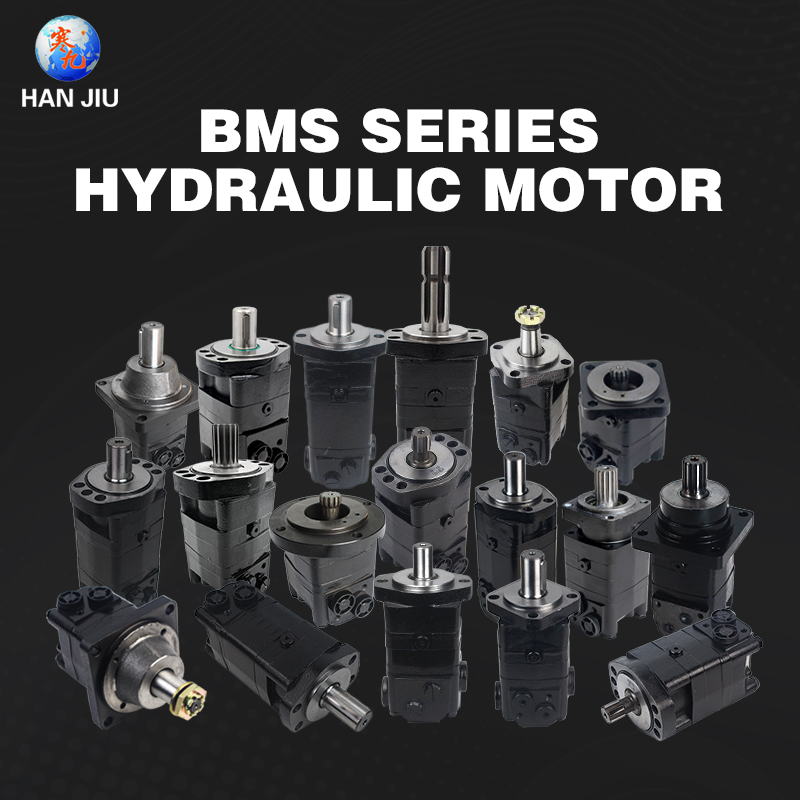

BMSY introduction:
This motor is a hydraulic disc motor, because it's widely used on kind of drills of Agricultural,Farm, Construction, Industrial and heavy machineries. it has numerous applications at any rolling, lifting, conveying applications. It's also called orbit hydraulic motor, or orbital motor, or Low Speed High Torque type motor, also disc valve hydraulic motors.
Main Specifications:
| Type | BMSY
80 | BMSY
100 | BMSY
125 | BMSY
160 | BMSY
200 | BMSY
250 | BMSY
315 | BMSY
375 |
Geometric displacement
(cm3 /rev.) | 80.6 | 100.8 | 125 | 157.2 | 200 | 252 | 314.5 | 370 |
| Max. speed (rpm) | cont. | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 200 |
| int. | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 240 |
| Max. torque (N·m) | cont. | 190 | 240 | 310 | 316 | 400 | 450 | 560 | 536 |
| int. | 240 | 300 | 370 | 430 | 466 | 540 | 658 | 645 |
| peak | 260 | 320 | 400 | 472 | 650 | 690 | 740 | 751 |
| Max. output (kW) | cont. | 15.9 | 18.8 | 19.5 | 15.6 | 15.7 | 14.1 | 14.1 | 11.8 |
| int. | 20.1 | 23.5 | 23.2 | 21.2 | 18.3 | 17 | 18.9 | 17 |
| Max. pressure drop (MPa) | cont. | 17.5 | 17.5 | 17.5 | 15 | 14 | 12.5 | 12 | 10 |
| int. | 21 | 21 | 21 | 21 | 16 | 16 | 14 | 12 |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 18.5 | 14 |
| Max. flow (L/min) | cont. | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 |
| Max. inlet pressure (MPa) | cont. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| int. | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| Weight (kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 12.6 |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute
Contact a hydraulics specialist or HANJIU . Solve all your hydraulic motor problems
The orbital motor supplied by Hanjiu is widely used in many fields. In the field of construction machinery, orbital motor drives the slewing mechanism of excavators, the working device of loaders, etc., which helps these large-scale machines work efficiently; in the field of agricultural machinery, it provides stable power for seeders, harvesters, etc., which promotes the mechanization process of agricultural production; in the field of logistic equipments, orbital motor drives conveyor belts, stackers, etc., which improves the efficiency of logistics and transportation. In logistics equipment, orbital motor drives conveyor belts, stacker cranes, etc. to improve the efficiency of logistics transportation. With excellent performance and stable quality, Hanjiu orbital motor has won the trust and praise of many customers.
